Varies in thickness with the nutritional status of the patient
Some branches from the femoral vessels (superficial circumflex iliac, external pudendal, and superficial inferior epigastric vessels)run in this layer
Clinical implication: The superficial inferior epigastric vessels are encountered during inguinal incisions and can cause troublesome bleeding during placement of pelvic laparoscopic ports
although it may be difficult to discern in older patients
Continuous with (5):
Camper fascia superiorly and laterally
Deep fascia of the thigh (fascia lata) laterally, 1 cm below the inguinal ligament along a line from the anterior superior iliac spine to the pubic tubercle
Colles fascia of the perineum medially
Dartos fascia of the penis
Dartos smooth muscle of the scrotum.
Clinical implication: the continuity of these fasciae can limit both the spread of infection in necrotizing fasciitis of the scrotum (Fournier gangrene), hematoma from injury, and the extent of urinary extravasation in an anterior urethral injury.
Because of these fasciae, bleeding, infection, or urinary extravasation will not extend down the leg or into the buttock but can freely travel up the anterior abdominal wall deep to Scarpa fascia to the clavicles§ and around the flank to the back. In the perineum, their spread is limited by the fusions of Colles fascia to the ischiopubic rami laterally and to the posterior edge of the perineal membrane; the resulting hematoma is therefore butterfly shaped.
The external, cremasteric, and internal spermatic fasciae are embryologically distinct from the scrotal and dartos layers and have their own blood and nerve supplies. It is uncommon for them to be involved in the necrotic process in Fournier gangrene; therefore they can be spared. (In practice, all scrotal tissue is debrided to the tunica vaginalisin patients with Fournier gangrene).
Laterally, there are the external oblique, internal oblique, and transversus abdominis muscles; medially, there are the rectus abdominis and pyramidalis muscles.
Laterally
Superficial to deep:
External oblique
Internal oblique
Transversus abdominis
The external oblique, internal oblique, and transversus abdominis muscles terminate on the anterior abdominal wall as broad, tough aponeurotic sheets that fuse in the midline (linea alba) and form the anterior and posterior rectus sheaths
The arcuate line/linea semicircularisis 2/3 of the distance between the pubis and the umbilicus
Above the arcuate line:
The anterior rectus sheath is formed by the aponeurosis of the external oblique muscle and a portion of the internal oblique muscle
The posterior sheath is derived from the remaining internal oblique aponeurosis and the transversus abdominis aponeurosis
Below the arcuate line:
The anterior rectus sheath is formed by the aponeurosis of all the muscle layers
The posterior sheath is absent; directly posterior to the rectus abdominus is transversalis fascia then peritoneum.
Medially
The linea alba is avascular and is a convenient point of access to the peritoneal and extra-peritoneal pelvic cavities.
Rectus abdominis
Arises from the pubis medial to the pubic tubercle and inserts on the xiphoid process and adjacent costal cartilages
Tendinous intersections connect it to anterior rectus sheath so rectus can be divided transversely without retracting
Innervated by T6-12
Pyramidalis
Arises from the pubic crest and inserts into the linea alba
Anterior wall and floor (inferior wall): external oblique, which folds over at its inferior edge as the inguinal ligament
Posterior wall: transversalis fascia
Roof (superior wall): fibers of the internal oblique and transversus abdominis
External inguinal ring
Invaginate the scrotum with a finger to identify approximate location
Lateral edges (crura): fibers of the external oblique aponeurosis split above the pubic tubercle
Superior edge: transverse (intercrural) fibers bridge the crura; by dividing the intracrural fibers, the external oblique can be separated along its fibers to gain access to the cord.
Internal inguinal ring
Location
Midway between the anterior superior iliac spine and the pubic tubercle
4 cm lateral to the external ring
Above the inguinal ligament
Lateral to inferior epigastric vessels
Cord structures pierce the fascia lateral to the inferior epigastric vessels at the internal inguinal ring.Source
Conjoint tendon
Formed by the fusion of the internal oblique and the transversalis fascia
Reinforces the posterior wall of the inguinal canal.

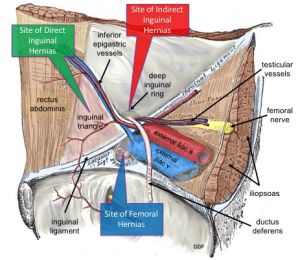

Hernias into the canal may occur medial (direct) or lateral (indirect) to the inferior epigastric vessels
Internal surface of the anterior abdominal wall
Approached laparoscopically, 3 elevations of the peritoneum, referred to as the median, medial, and lateral umbilical folds, are visible on the anterior abdominal wall below the umbilicus:
The median fold contains the median umbilical ligament (urachus), a fibrous remnant of the cloaca that attaches the bladder to the anterior abdominal wall.
The medial umbilical fold contains the obliterated umbilical artery and serves as an important landmark for the surgeon as it may be traced to its origin from the internal iliac artery to locate the ureter, which lies on its medial side. During the performance of transperitoneal laparoscopic or robotic radical prostatectomy, the medial umbilical folds are used as landmarks to guide the dissection of the bladder to expose the space of Retzius.
The lateral umbilical fold contains the inferior epigastric vessels as they ascend to supply the rectus abdominis.
SourceLaparoscopic view of anterior abdominal wall and pelvis, demonstrating a direct inguinal hernia. a: rectus abdominis; b: inferior epigastric artery; c: inguinal ligament; d: Hesselbach's triangle; e: inguinal hernia. Source
